Production Capacity: | 1000PCS Per Month |
Payment Terms: | T/T |
Type: | Host+humidifier+ trolley(Separable) |
Quality Guarantee Period: | Two Years |
Group: | Adult |
Size: | 280 * 200 * 112mm(Host+humidifier) |
Packing Carton: | Size:375 * 290 * 235, GW:4.6kg |
PCS/carton: | 1 pieces |

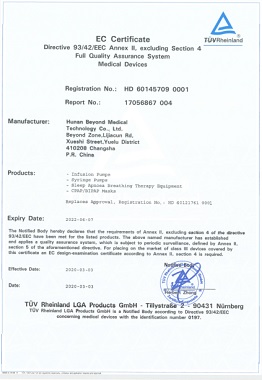

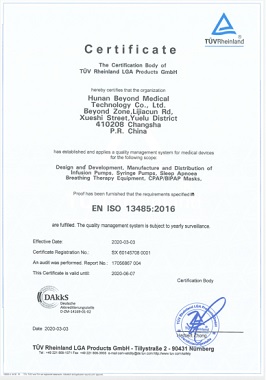

Certificates: | CE, TUV |
Screen: | 3.5 Inch color TFT |
Work mode: | CPAP,S/T,S,T,APCV |
Inspiration Pressure: | 4-30cmH2O |
Inspiration sensitivity: | Auto,1-6 level |
Expiration Pressure: | 4-25cmH2O |
Inspiration sensitivity: | Auto,1-6 level |
VAF function: | Yes, Tidal Volume 50~2000m |
Accuracy: | ±0.5cmH20 |
Belex: | 1-3 level (2-4cm H2O), makes the expiration more comfortable |
Ramp: | 0-60min |
Islop: | 1-6 Level |
BPM: | 3-40bpm |
Inspiration time: | 0.5-4.0s |
Noise: | <30dB |
Auto on/off : | Auto off while tube/mask off, Auto on when it detects breath |
Leakage compensation: | Yes |
Altitude compensation: | Yes |
SPO2: | Yes |
Humidifier: | 0-5 level,water chamber separable |
Realtime Alarm: | Power failure/Low voltage/Airway Block/Low MV/High Leakage/humidifier failure/TF card full/High Pressure/Low Pressure/Replace Filter |
Data download: | TF Card 8G |
Self-diagnostic questionnaire(Epworth): | Yes, makes patient understand the potential breathing apnoea by himself |
Net Weight/size: | 2.2kg, 280*200*112mm(Host+humidifier) |
Gross Weight/size: | 4.6KG,375*290*235mm |

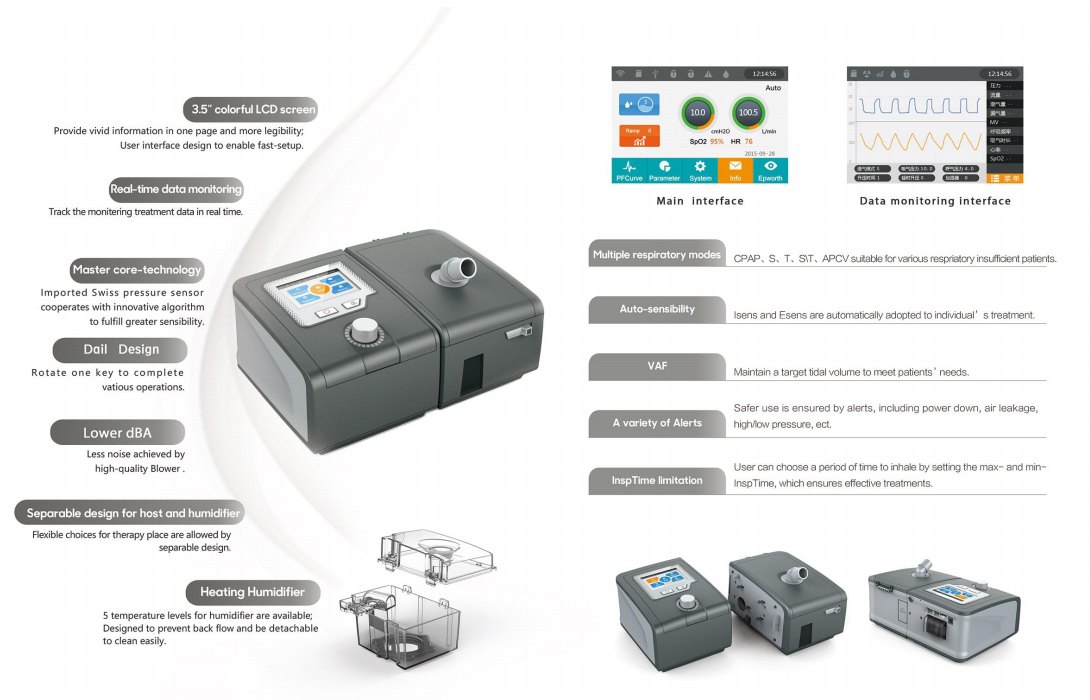

1.Color LCD display, user friendly
2.Small size, easy to transport

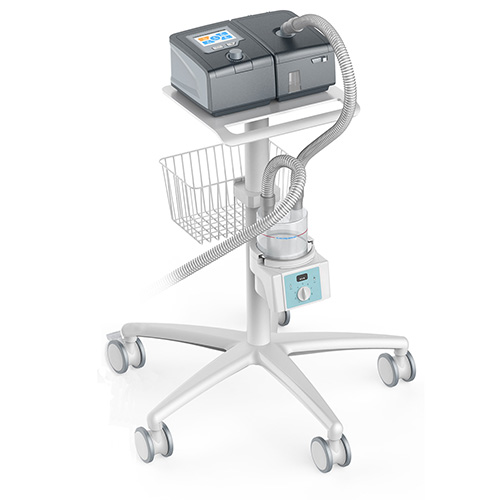

3.Can be equipped with trolley, independent humidifier and Sp02module
4.Real-time display and monitoring of clinical data of patient
5.Can connect to lowflow oxygen for air-oxygen mixing
6.With VAF (Vital assurance function)
7.The Max IPAP reaches 30cmH2O
Non-invasive ventilation is mainly applied to patients with mildor moderate respiratory diseases, free of emergency intubation,which of relatively stableital signs,and no contraindications tonon-invasive ventilation.
It is used for early intervention and assisted withdrawal ofinvasive ventilator.
1.Early intervention for respiratory failure for patients with COVID-19;
2.After extubating, the patient is removed from the invasive venti-lator and transported to a noninvasive ventilator. The patient hasa certain a bility to breathe spontaneously and is in good condit-ion, or applied when transferred to a general ward.
For mild to moderate patients (PaO2<60mmHg,SpO2<90%, RR>24),non-invasive ventilation can be considered for respiratory supportwhen oxygen therapy is not effective.
For COVID 19,ventilator is one of the mosteffective treatments in the absence of specificdrugs. Under ventilated, the blood oxygen ofpatient can be effectively improved and themortality rate can be reduced.
As the 6th edition of"COVID. 19 Diagnosisand Treatment Plan"(issued by the NHMC ofChina) states: Noninvasive ventilation can beconsidered, when respiratory distress and/orhypoxemia that cannot be alleviated afterOXYgen therapy.
