Features

1. Main antiseptic factor and strength

     a.The product is mainly for ozone sterilization factors(Ozone )₃
     b.In a closed space, temperature of 23-27 ℃, humidity 40-60% RH of the environment, on 60
minutes, conforms to the national standard GB28232-2011 ozone generator safety and health standard"6.4.1 on ozone concentration in the air after 20 mg/m or higher.
2. Sterilization principle：Using Ozone oxidation damage the structure of the microbial membrane, in order to realize 3
the antiseptic effect.
3. Kill microorganisms category:

     a .White staphylococcus, boot disinfection role in 10 m after test tank for 30 minutes, 20 to 25 ℃
temperature, humidity (50-70) % RH environment, rate of killing white staphylococcus, three test results is
99.90% or higher are in conformity with the technical standard for disinfection,
     b .Natural bacteria in air: in 60 m after boot disinfection effect on 60 minutes, in a closed space
temperature 24-26 ℃, humidity (58-63) % RH conditions, death rate of natural bacteria in air, three test
results were 90% or more; Comply with the technical standard for disinfection,
4. Using range：This product is suitable for the closed space of natural bacteria in air and white staphylococcus
culling.
5.Main components life span:≥20000H.
6. Matters needing attention：

     a.Please not use in indoor, disinfection after 60 minutes enter indoor and ventilated.
     b.Please use in strict accordance with the instructions.
     c.Please according to the requirements of maintenance maintenance regularly.
     d.There is high pressure and non-professional electrician do not open the case.





Disinfection Method

Ozone sterilization is a dissolving bacteria level method, which can kill bacteria, spores, viruses, fungi, etc., and destroy botulinum toxin. In addition, O3 has killing effect on mould. Because of its poor stability, O3 will soon decompose into oxygen or a single oxygen atom, and a single oxygen atom can combine into oxygen molecules by itself, without any toxic residues. Therefore, 03 is a non polluting disinfectant. 03 is a gas, which can quickly diffuse into the whole sterilization space without dead angle.
The sterilization and disinfection effect of active oxygen (ozone) is reflected in its strong oxidation, and it is a globally recognized green, broad-spectrum and efficient disinfectant. It is widely used in drinking water disinfection, air disinfection in medical and health institutions, ozone will automatically reduce to oxygen after 30-40 minutes, no chemical residue secondary pollution. The application fields include disinfection cabinet, fruit and vegetable detoxification machine, gynecological therapeutic apparatus, food processing, drinking water filling and disinfection equipment, etc.





Application Scenario





Maintenance Detailed Rules

1. Place the machine in dry and ventilated place, dust-proof net clean up once a month on a regular basis.
2. The ozone disinfection machine professional electrician, please do not out of the box (with high pressure).
3. Please professional maintenance electrician, open the case back cover.
4. Regularly check the machine internal connection is loose, loose connection, please use a screwdriver twist.
5.To buy the products customers, all can buy consumables in the company for less than the market price.
6. Equipment maintenance, such as door-to-door service, should be paid by the customer travel expenses, firms regard journey far and near, select distribution, door-to-door service) to the nearest.
7. Equipment maintenance please send warranty CARDS randomly to send back to the company, if it is
inconsistent with the above instructions, the company does not undertake maintenance costs.

Technical Parameters

Model	Ozone(g/h)	Power	Net Weight	Size(cm)
FL-805N	5	135	8	48*28*28+6
FL-810N	10	185	8.5	48*28*28+6
FL-815N	15	235	8	48*28*28+6
FL-820N	20	450	18	55*30*55+6
FL-830 N	30	600	19	55*30*55+6
FL-840N	40	800	28	5*30*75+6
FL-850N	50	980	30	5*30*75+6
FL-860N	60	1130	32	5*30*75+6
FL-870N	70	1220	34	5*30*75+6
FL-880N	80	1450	43	85*30*90+7
FL-8100N	100	1750	47	85*30*90+7
FL-8150N	150	1990	53	85*30*90+7
FL-8200N	200	2480	59	85*30*90+7
FL-8280N	280	3250	67	85*30*90+7

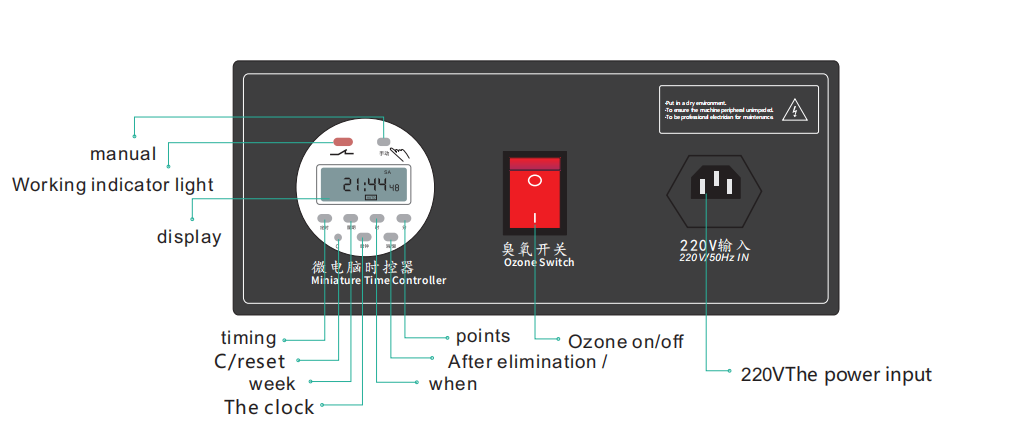

The Control Panel

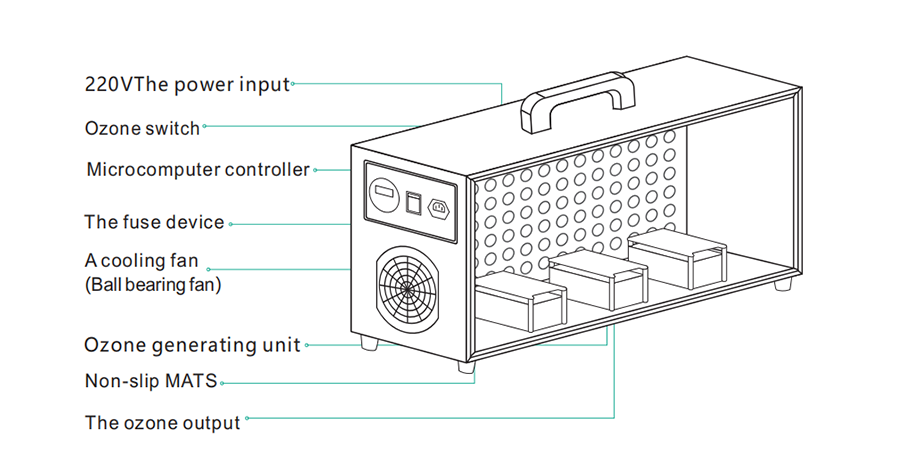

Product Structure

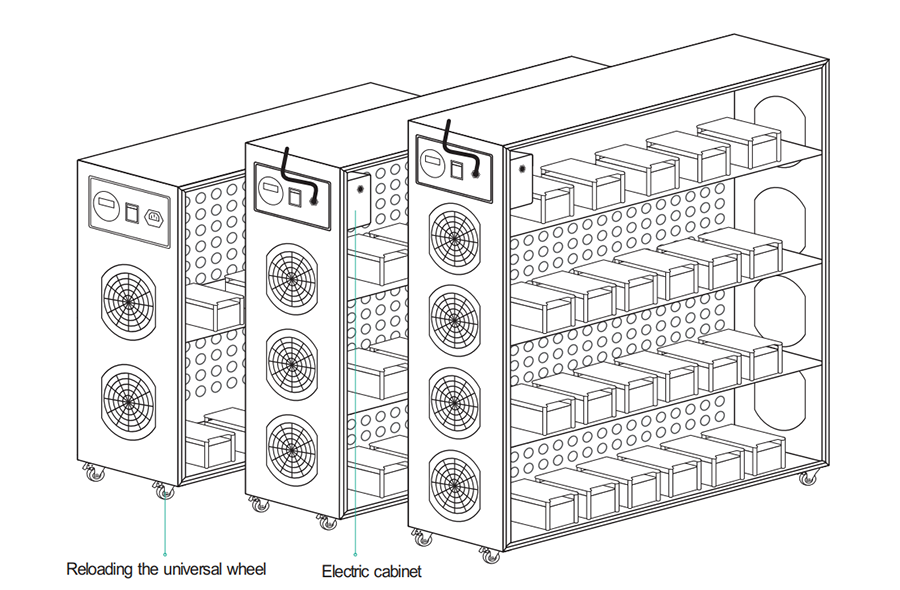

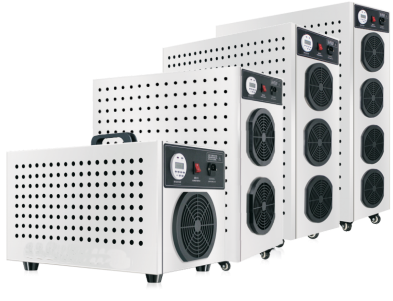

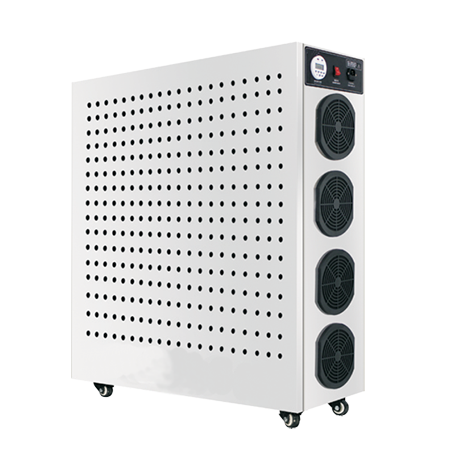

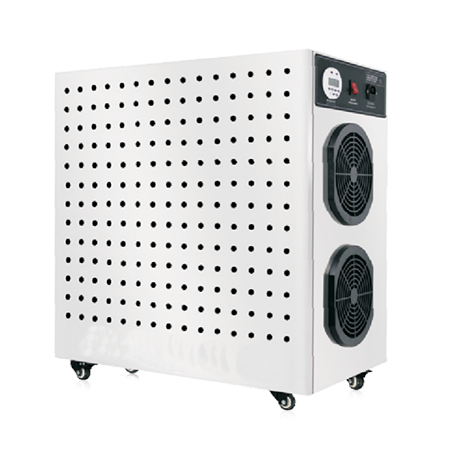

Series Product

FAQ

1. Is Ozone harmful to human body?
Q:Ozone is a non-toxic and safe gas with green grass smell. People's perception of ozone concentration is only 0.02-0.04ppm, with a certain interval from the safe concentration.In the indoor use of ozone purification air, smell the smell of ozone has basically reached the role of disinfection.
2. What is the safety consistence of Ozone?
Q:The concentration causing certain reaction of personnel is 0.5-1ppm, and the allowable exposure time is 1.5h. If the exposure time is long, people will feel discomfort such as dry mouth.
